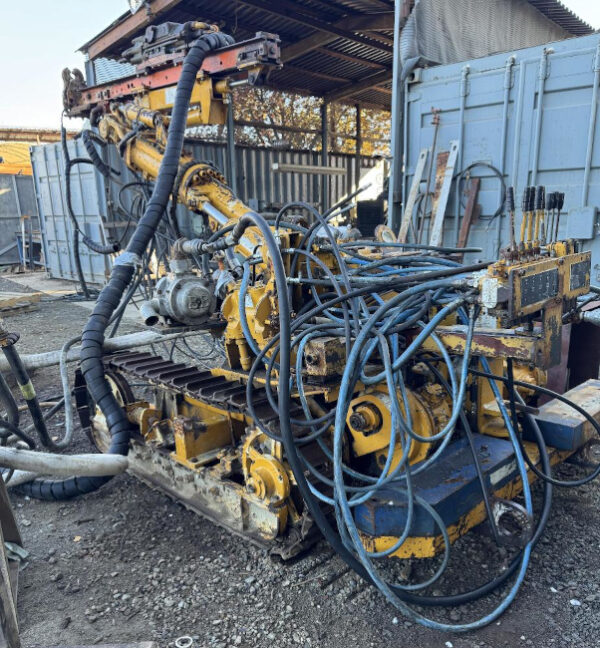

INGERSOLL RAND LM100A AIR TRACK DRILL

Description

Ingersoll Rand LM100A Air Track Drill. Equip Yourself with the Gold Standard,

• Model: LM100A
• Drive Unit Model S191
• 360° Rotational Boom
• Tamrock Pneumatic Hammer
• 6Ft Steel Change
• Chain Feed
• General Specifications:
  • Guide:
    • Feed Motor Pull:  3000lbs (1360kg)
    • Drill Rod Length: 120″ (3048mm)
  • Carrier/Tracks:
    • Grouser Width: 8in (204mm)
    • Track Length, Overall: 72in (1845mm)
    • Ground Contact Area: 410in^2 (5304mm^2)
    • Ground Clearance: 9in (230mm)
    • Gradeability: 30°
    • Max Tramming Speed: 2.0mph (3.2km/h)
• Overall Dimentions:
• • Length 134in
  • Width 122in
  • Height 122in
