Description
6’9″ Dia X 7 Disc Eimco Filter, 81 Sectors with Cloth, 2 Travaini Vacuum Pumps, Electrical Controls. Equip yourself with the gold standard.
Manufacture & Design
- Serial #: 81624-01-AR
Components & Inclusions
- (81) Sectors (with cloth), Sector Barrel with One Valve
- (1) Receiver Tank, 25” Dia x 64” H
- On (4) 2 ½” Angle Iron x 28 ½” Long Legs
- (1) Receiver Tank, 36” Dia x 6’ H
- On 12” High Angle Iron Base
- (2) Pompe Travaini Vacuum Pumps
- Pump Type TRSE 125-1250/C/CH
- Pump 1: S/N L0627, Year 1996
- Pump 2: S/N M4208, Year 1998
- (1) Hyundai 60HP, 575 Volt, 3PH, 60 HZ, 1180 RPM Motor
- For Vacuum Pump
- (1) Electrical Control Panel
- (2) New Rubber Valve Hoses
- (2) New Rolls Poly Rope
History & Notes

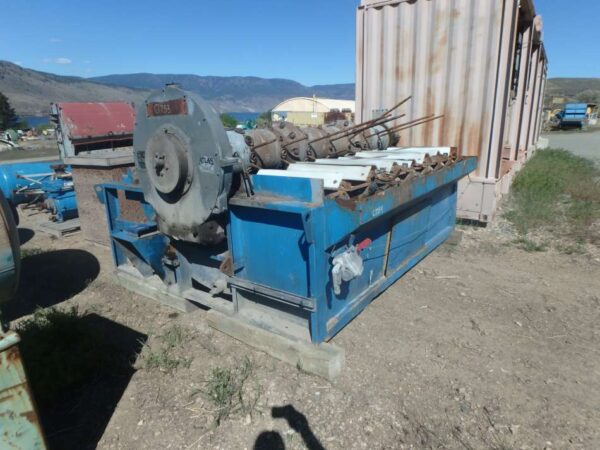

- The 6’9″ Dia x 7 Disc Eimco Filter is Disassembled and ready for inspection and shipping
