Description

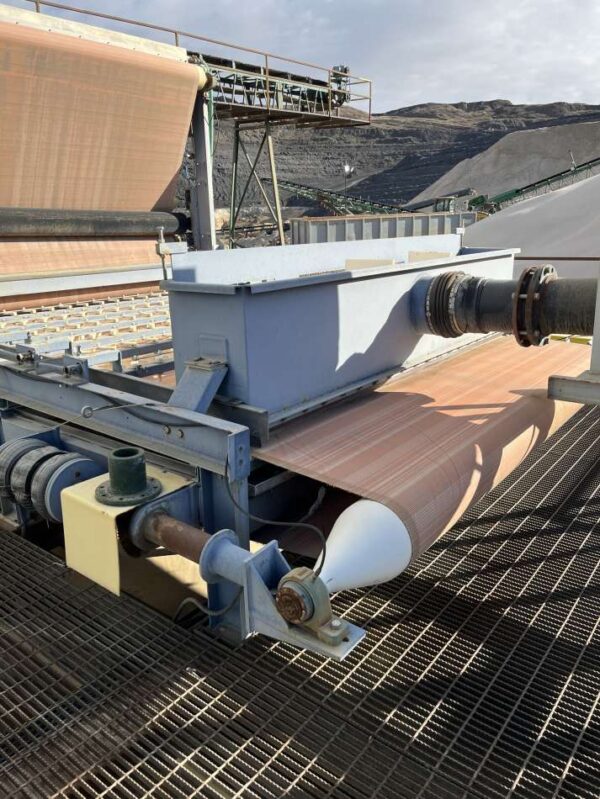

FLSmidth Tails Dewatering Press. Equip yourself with the gold standard.
Manufacture & Design
- Model 3M-TDP (3 meters wide)
- Left-handed configuration
- Feedbox distributor
- Gravity drainage zone
- Drive pulley and bearings
- Adjustable pre-treatment wedge
- S-roll configuration with 6 rolls per filter
- Drain pans and drip pans to prevent rewetting
- Discharge scraper – spring tensioned with urethane scraper blade
- Endless filter belts (one upper and one lower)
- Belt tensioning system – pneumatic
- Belt alignment system – pneumatic
- Speed sensor – emergency pull cords (full length on both edges of filter)
- Carbon steel with epoxy paint
- Bolt-up design that can be shipped in containers
Components & Inclusions
- One (1) pushbutton control panel
- IP66 (NEMA 4X) FRP enclosure
- On/Off E-stop
- Keyed safety lock
- Belt speed control
- Maintenance jog – forward/reverse
- Belt tension adjust (upper and lower belts) with pressure gauges
- System air pressure indication
- Air regulators
- One (1) VFD for belt drives
- VFD with IP10 (NEMA 1) enclosure for belt drive, Allen Bradley or equal
- 7.5 kW (10 HP), 14A
- The VFD to be installed in customer’s MCC
- One (1) lot valves & instruments
- Valves and instruments as described in P&ID and Valve & Instrument List
- Belt Press – Options
- Manual Lubricating System
- Two (2) single point lubricating blocks will be centrally located on each side of the filter
- Each bearing will be connected to the lubrication block for ease of lubrication
- Four (4) manual spray nozzle brush type cleaning system
- Two (2) per belt – one (1) outside and one (1) inside wash
- Automatic drain in each wash header
- Cleaning during operation
- An automatic system can be offered upon request
