ALAR AUTO-VAC MODEL 660 ROTARY STAINLESS VACUUM DRUM FILTER

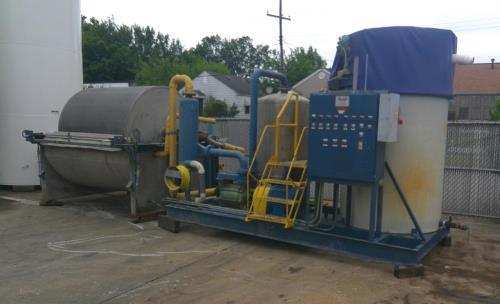

This Used Alar Auto-Vac Model 660 Rotary Vacuum Drum Filter is a self-cleaning, automatic wastewater treatment system built with stainless steel construction and designed to handle a wide variety of water-based effluents.

Equipped with a 6′ x 6′ drum offering approximately 113 sq. ft. of filter area, this system includes auto-advancing knife discharge, receiver and pre-mix tanks, a 40 HP vacuum pump, and a full control panel. The unit requires 460 VAC 3-phase and 120 VAC single-phase power, and is mounted on two heavy-duty skids for ease of installation and transport. Equip yourself with the gold standard.

Specifications:

• Model: Auto-Vac 660

• Serial Number: 11667

• Filter Drum Dimensions: 72″ OD x 75″ L (6′ x 6′)

• Filter Area: Approx. 113 sq. ft.

• Construction: Stainless steel

• Discharge: Auto-advancing knife discharge

• Pump: 40 HP vacuum pump

• Power: 460 VAC 3-ph & 120 VAC 1-ph

• Control: Full control panel included

• Skid Dimensions:

  • Filter drum skid: 118″ W x 152″ L x 94″ H

  • Tank skid: 93″ W x 186″ L x 112″ H
