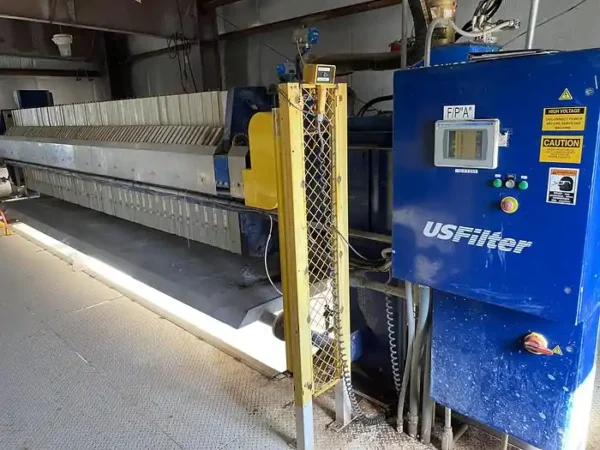

US Filter Press 100cu ft. Recessed Plate J-Press. Equip Yourself with the Gold Standard.
Manufacture & Design
- Model:Â 1200M32-82-100SYHC
- S/N:Â F07587
- Max Feed Pressure 100 PSI
- Max Squeeze Pressure 225 PSI @ 68F
- Â Air Supply Pressure 100 PSI
- HYD Clamping Pressure 3400 PSI
- Relief Pressure 3800 PSI
- 82 Plates
- Center Feed 4″
- (4) 2.5″ Outlets
- Plates are Polypropylene Non-Gasketed Mixpack Membrane with Recesses Forming a
- 1.25″/32 mm Thick Cake
- 100 cu. ft. Cake Capacity
- 2059 sq. ft. Filtering Area
- Automatic Pry & Bump Plate Shifter
- Drip Tray
- Light Curtain
- Built 2004
- Weight 32,017 lbs.
- Comes with Spare Set of Plates and Some Filter Cloths
- As Is, Where Is: South Carolina
