Description

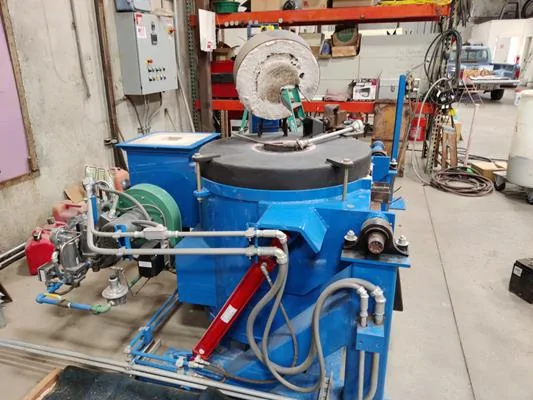

Baker Model 60-T Hydraulically Operated Crucible Furnace. Equip Yourself with the Gold Standard.
Manufacture & Design
- MFG date 2015
- Up to 2200° FAH Operating Temp
- Silicon Carbide Crucible PT#60T
- Silicon Carbide Base Block 15″ Dia x 6″ High
- Eclipse Ratio Propane Fired Air Burner, 250000 BTU/Hr
- Natural Gas
- Fuel Replacement 5 PSI@250ft³/HR
- 48 LB/HR Melt Rate from Cold Start
- 68 LB/HR Melt Rate with 50% Molten Heel
- 7″ Thick High Alumina Castable Refractory Lining with Back Up Insulation
- 1.0″NPT Inlet Pipe Size for Propane
- Foot Print 5′ x 5′
- Shipping Weight 2300 LBS
- Turbo Combustion Blower
- FM Flame Safety Device
- Integral Hydraulic Pump System, 1 HP Pump with 2 GAL Reservoir
- Voltage 230/460, 3 PH, 60 HZ
- Spring Centered Acutator for Tilt & Pour
