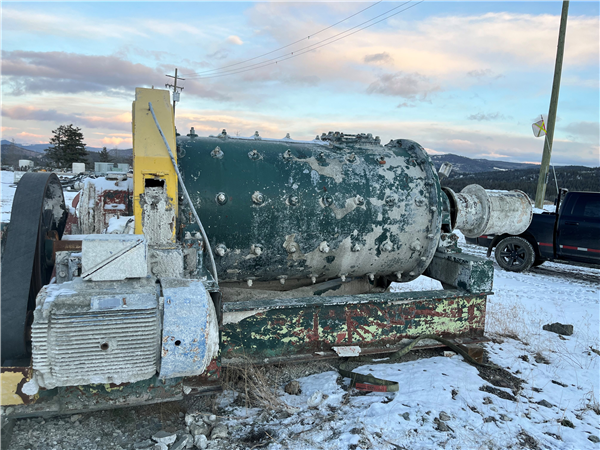

4′ X 8′ DENVER BALL MILL, 50 HP

Description

4′ x 8′ Denver Ball Mill, 50 HP, 900 RPM, 460 Volts. Equip yourself with the gold standard

Manufacture & Design

• Integrally Cast Steel Heads & Trunnions
• Rigid Babbitted Type Trunnion Bearings
• Rolled Steel Shell with One Manhole
• Chrome Molly Shell and Head Liners
• Scoop Feeder
• 18″ x 24″ Trommel Screen with 3/16″ Openings
• Full 360 degree Gear & Belt Guards
• Structural Steel Sub Base

Components & Inclusions

• 50 HP Motor, 900 RPM, 3 Ph, 60 Hz, 460 Volts, TEFC, 404T Frame, 1.15 S.F.
• Motor Sheave:  9.25 O.D., 8-Groove, 5V Section, QD Hub
• Driven Sheave:  37.5 O.D., 8-Groove, 5V Section, QD Hub
• V-Belt:  5V1400, 29.9 C.D. (4.09:1)
• Gear Ratio:  7.41:1
• Mill RPM:  28.7 (75% of Critical Speed 38.3)

Dimensions

• Ball Mill with Bullgear and Liners mounted on a steel skid
  • 165″ L x 91″ W x 84″ H
  • Est. Wt. 25,000 lbs.
• (2) Guards for bull Gear
  • 60″ L x 22″ W x 20″ H
  • Est. Wt. 300 lbs.
• Guard for bull gear
  • 92″ L x 60″ w x 22″ H
  • Est. Wt. 500 Lbs
• Guard for Sheave
  • 42″ L x 18″ w x 12″ H
  • Est. Wt. 400 lbs.
• Trommel
  • 24″ L x 24″ W x 24″ H
  • Est. Wt. 200 lbs.
• Motor Mount Take Up
  • 30″ L x 18″ W x 4″ H
  • Est. Wt. 500 Lbs.
• Motor Mount Plate
  • 48″ L x 28″ W
  • Est. Wt. 350 Lbs
• Motor Mount Plate
  • 48″ L x 28″ W
  • Est. Wt. 250 Lbs
• Pinion Gear with Driven Sheave
  • 54″ L x 46″ W x 40″ H
  • Est. Wt. 1,200 Lbs.
• 20′ Container
  • 20′ L x 8′ W x 8′ H
  • Est. Wt. 5,000 lbs.
