UNUSED CITIC BALL MILL18′ X 26’6″

Description

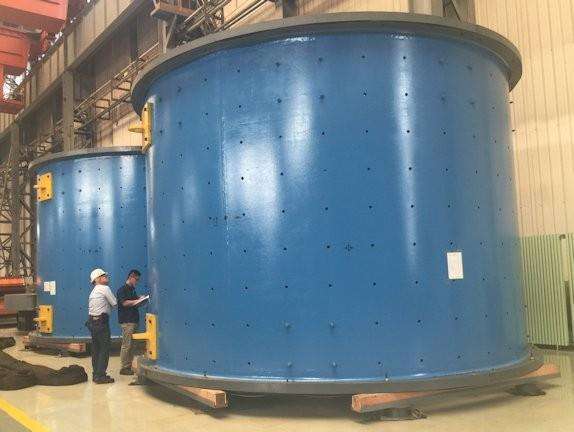

UNUSED CITIC 5500mm X 8100mm EGL (18′ x 26’6″) Ball Mill

SPECIFICATIONS:

• Manufactured in 2013
• Tag No. 300-ML-001
• Ref. Spec. No.:  127008-1908
• Diameter Inside Shell  – 5500mm
• Diameter Outside Shell Flange- 5980mm
• Shell Length, Flange to Flange  –  8300mm
• Effective Grinding Length  –  8100mm
• Shell Thickness 65mm
• Shell Material  –  Q235B (ASTM A36 Equal)
• Head & Trunnions Material  –  ASTM A216 WCA
• Feed & Discharge Trunnion I.D.  –  2480mm
• Hydrostatic Trunnion Bearings, 2800mm dia. x 650mm W, Slipper Material Babbit
• Mill RPM (approx.) 13.23
• Rubber Liners
• Citic MBD90-5D Gear Reducer
• Fabricated Trommel, 2.3m x 3.4m
• MKS Model ZYQ2 LRS, Type AFA61/1700A, S/N 21430
• WEG Model MAF12806, 4100 kW (5496 HP) Induction Motor, 894 RPM, 13800 Volts, 215.1 Amps, 3 PH, 60 Hz, 1.0 S.F., 12806 Frame, 8-Poles, S/N 1024338945

SPARE PARTS (Additional Cost):

• 1 ea – 2800 x 650 Slipper
• 1 ea – Feed End Trunnion Liner
• 1 ea – Discharge End Trunnion Liner
• 1 ea – Pinion Shaft with Pinion Gear
• 1 ea – Pinion Bearings
• 1 ea – WEG Model MAF12806, 4100 kW (5496 HP) Induction Motor, 894 RPM, 13800 Volts, 215.1 Amps, 3 PH, 60 Hz, 1.0 S.F., 12806 Frame, 8-Poles, S/N 1024361369
• 1 ea – Speed Reducer
• 1 ea – Trommel Frame (Rubber Lined, No Panels)
• 1 ea – Immersion Heater
• 1 ea – Motor Lube Pump
• 1 ea – Gearbox Lube Pump
• 1 ea – Trunnion Bearing Lube High Pump
• 1 ea – Trunnion Bearing Lube Low Pump
• 2 ea – Set of Trunnion Seals
• 1 ea – Feed End Trunnion Wear Liner
• 1 ea – Discharge End Trunnion Wear Liner
• 1 ea – Mill Liner Set – (Rubber – 30t)
• 1 ea – Gear Box Bearing and Seals Set
• 2 ea – Feed Spout Liner Set
• 2 ea – Feed Chute Lip Seal
• 2 ea – Trommel Replacement Panel
• 2 ea – Set of Lube System Filters
• 2 ea –  Gear Spray Nozzles – Sets
• 1 ea – Set of Trunnion Seals
• 1 ea – Feed Chute Lip Seal
• 1 ea – Set of Lube System Filters
