Description

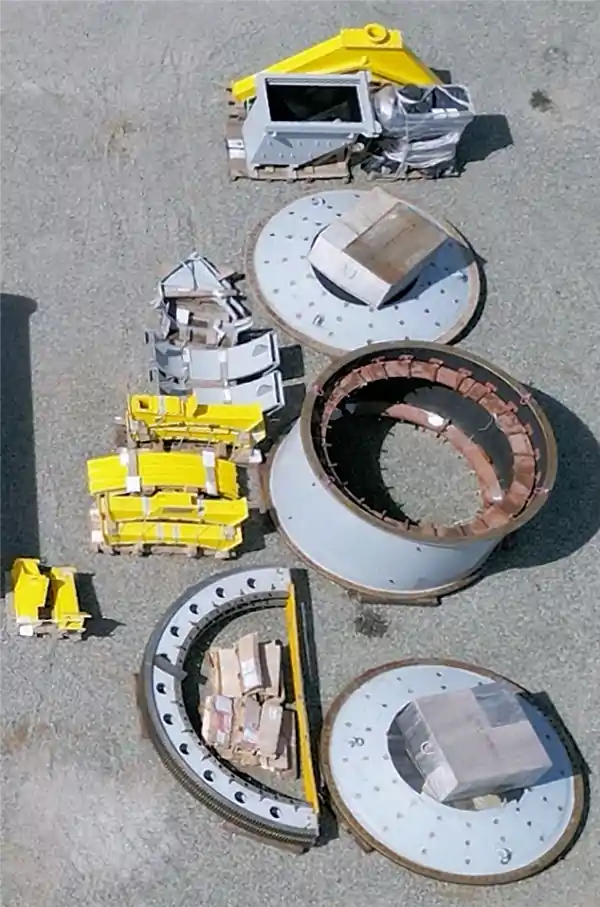

UNUSED OUTOTEC 3.7M X 1.5M EGL (12.1’ X 4.9’) SAG MILL, 350 HP (260KW)
SPECIFICATIONS:
- SERIAL NUMBER 17-12-SAG
- MANUFACTURED IN 2017
- BRO-0301
- GRATE DISCHARGE
- 3.66M DIAMETER
- EGL 1.52M
- GRATE OPENING 12.7MM
- SAG DESIGN (SAG PINION ENERGY) 4.1 KWH/T
- SAG DESIGN (SPECIFIC ENERGY) 7.1 KWH/T
- FRESH FEED RATE, DRY – NOMINAL: 24.1 TPH
- FRESH FEED RATE, DRY – DESIGN: 29.3 TPH
- DESIGN FACTOR: 21.8%
- WATER ADDITION – DESIGN: 19.3 M3/H
- MILL FEED PERCENT SOLIDS: 65.0%
- MILL DISCHARGE SLURRY:
- FLOWRATE, PULP – DESIGN: 35.1 M3/H
- TROMMEL SPRAY WATER FLOWRATE – NOMINAL: 5.0 M3/H
- TROMMEL SPRAY WATER FLOWRATE – DESIGN: 5.0 M3/H
- TROMMEL OPENING: 12.7MM
- WEG THREE PHASE INDUCTION MOTOR – SQUIRREL CAGE
- 350 HP (260 KW)
- 1784 RPM
- W50 5009/10 FRAME
- 60 HZ
- 575 VOLTS
- 314 AMPS
- SET OF RUBBER LINERS (VALUED AT CAD (140.00)
- SAG MILL HEADS WEIGH 25.600 LBS
COMPONENTS INCLUDED:
- 1 PC SHELL
- (2) HEADS
- 2 PC RING GEAR
- 350 HP MOTOR
- (2) SKF1180 ROLLER BEARINGS
- DRIVELINE BASEPLATE
- (2) BASEPLATES MOTOR
- (2) SRB 1180 BASEPLATES
- FEED TROLLEY
- TRUNNION GREASE SYSTEM
- PINION GREASE SYSTEM
- GEAR SPRAY SYSTEM
- (2) BEARING HOUSES 1180
- GEAR UNIT D2PSF70 STEEL GUARD COUPLING HALF
- PINION BEARING SET
- BOLT ASSEMBLY M56X1750
- MISC BOLTS, NUTS, SHIMS
- FOOTPLATES AND BOLTS
- TROMMEL
- ADAPTER FLANGE SR239/1180
- FEED TRUNNION LINING, FLANGE AND FASTENERS
- FASTENERS
- PINION GEAR
- SM 1180 DISCHARGE TRUNNION LINER AND FASTENERS
- SEAL FELT ASSEMBLY
- TEGA LINER, SCREWS, CLAMP BLOCKS
- MISC BOLTS
- (2) HOLDING RING
- ROCK BOX ASSEMBLY
- SHROUD
- SHROUD WELDMENT
- DRIP TRAY
- INNER DRIP TRAY
- (2) ERECTION CRADLES
- (2) ERECTION CRADLE SUPPORT BEAMS
- ENERPAC
- (5) BASEPLATES, SPRING PLATES, SHIMS
- FOUNDATION FOOTINGS
- (5) RING GEAR GUARDS
- MISC DISCHARGE LINERS, LIFTERS, SUPPORT SEGMENTS, HEAD PLATES
EXCLUSIONS:
- VFD
- CONTROLS
- STARTER
