Description

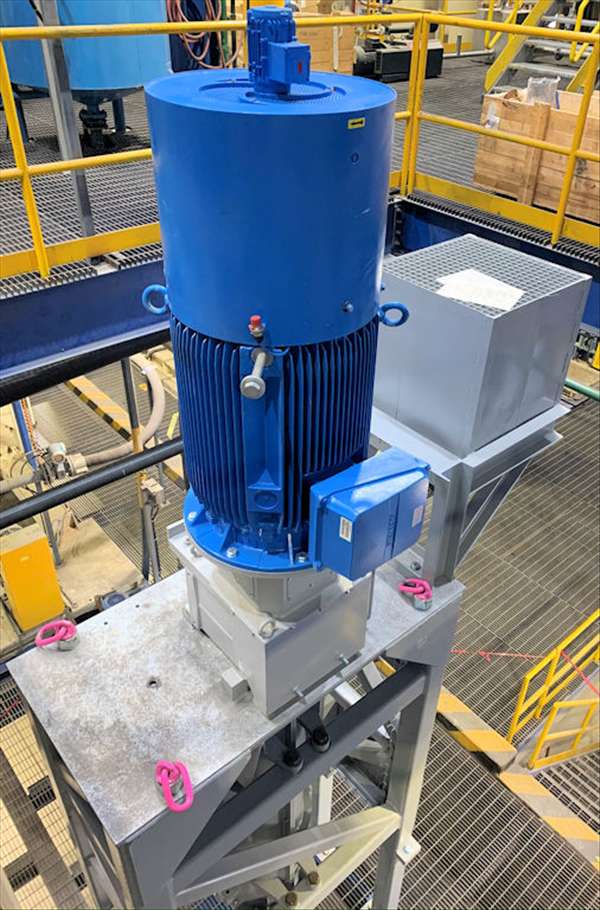

UNUSED METSO/OUTOTEC H16 132/200 VERTICALLY STIRRED GRINDING MILL. EQUIP YOURSELF WITH THE GOLD STANDARD.
SPECIFICATIONS:
- SIDE PORT FEED
- SIEMENS 65L3710-IGE33-8AA3-2 VSD (VARIABLE DRIVE) FOR MAIN MILL MORR, 6 PULSE, 460 VOLT
- SIEMENS 132 KW LOW VOLTAGE AIR COOLED SQUIRREL CAGE MOTOR 1790 RPM, 460 VOLT
- FLENDER GmbH 46363 BOCHOLT GERMANY HSIV, SIZE 5 GEARBOX
- STM MINERALS AG GRINDING MEDIA SQUARE HOPPER, 250 LITRE
- MIN MILL SPEED 123 RPM
- NOMINAL MILL SPEED 308 RPM
- MAX MILL SPEED 370 RPM
- MIN TIP SPEED 2.0 M/S
- NOMINAL TIP SPEED 5.0 M/S
- MAX TIP SPEED 6.0 M/S
INCLUDES
- STRUCTURE AND INSTRUMENTATION
