Description

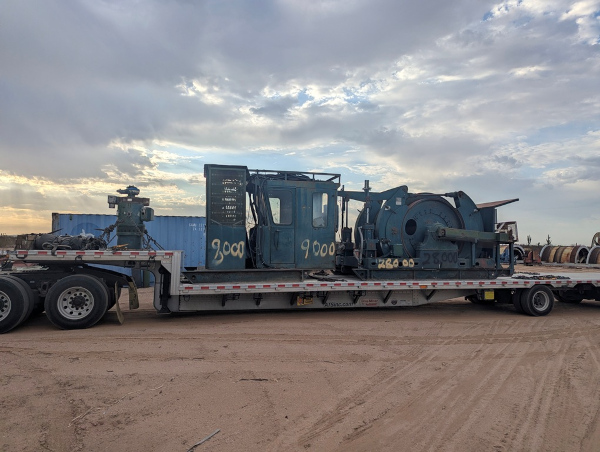

Used 5′ Dia x 38″ Face Asea Single Drum Mine Hoist. Equip Yourself with the Gold Standard.
Manufacture & Design
- Approximate Rode Capacity Up to 2700 Ft (822 m) on 1″ Rope and Multilayer Spooling
- Actual Capacity Dependant on Rope Condition and Winding Practices
- Rated Maximum Line Pull 12000 Lbs (5443 kg)
- Line Speed 394 Ft/Min (2.8 m/sec)
- Drum Face Width 38″ Configured for 1″ Rope
- Equipped with Drum Caliper Brakes on Both Sides, with Pneumatic Release and Weight – Applied Braking System
- Driven with 125 HP Vertical Mount Motor, 575 Volt, 127 Amp, 1765 RPM, 3PH, 60Hz, Asea Induction Wound Rotor Motor
Excluding:Â Cable, Headframe, Main Cage and Skip
Price:Â As Is Condition
Option: Refurbished for Extra Cost
