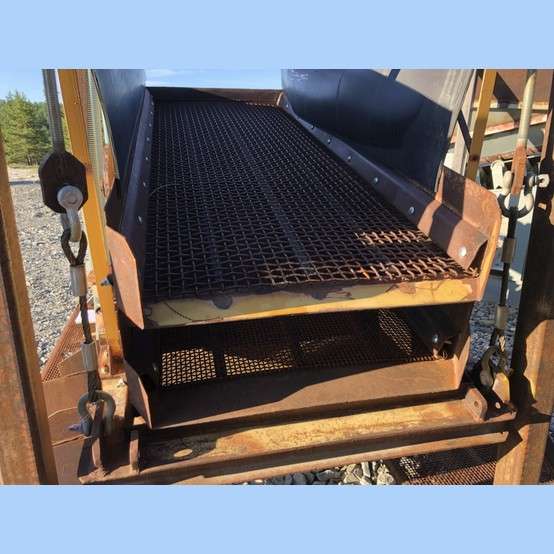

3′ X 8′ DILLON DOUBLE DECK SCREEN

Description

3′ X 8′ Dillon Double Deck Screen, Wash Bar, Skid Mounted, 17.5″ x 10″ Discharge Chute. Equip yourself with the gold standard.

Manufacture & Design

• Incline Screen
• 3ft x 8ft (36in x 96in)
• 2-Deck
• Screen Spacing:
  • Top Deck: 1.5in
  • Bottom Deck: 1in

Components & Inclusions

•  Additional Screens: 1.5in, 2.5in, 1.25in, 1in
• Wash Bar
• Discharge Chute: 17.5in Wide x 10in High
  • (2) Additional Output Chutes
    • 38in Wide x 44in Long x 35in High
    • 43in Wide x 42in Long x 27in High
• Skid Mounted
  • Skid Pipe Diameter: 6in Dia.

Notes

• Dimensions of Screen:
  • Length: 117in
  • Width: 71in
  • Height: 55in
