Description

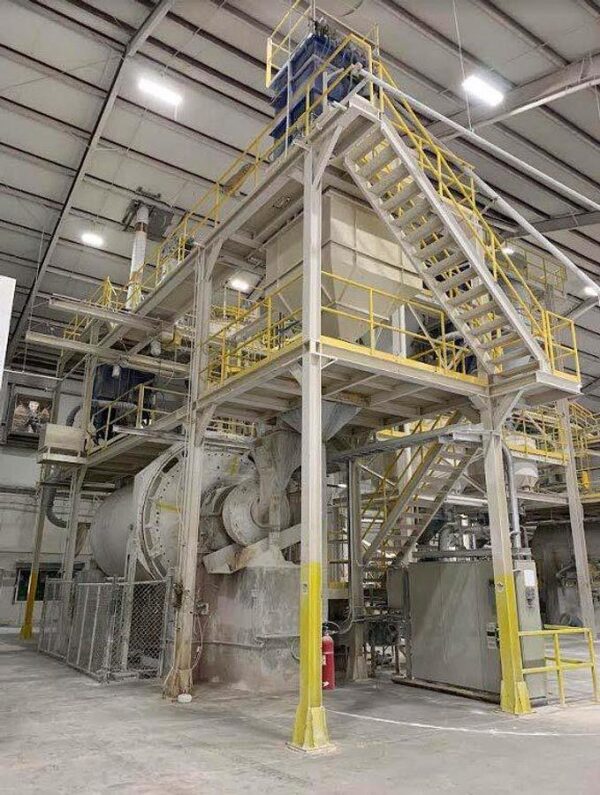

8′ X 15′ BALL MILL SYSTEM WITH AIR CLASSIFIER AND DUST COLLECTION
- SILEX-LINED ANIVI BALL MILL DRIVEN BY 275 KW (370 HP) MOTOR THROUGH 10:1 GEAR REDUCER
- INSIDE DIMENSIONS MEASURE 2420MM DIAMETER X 4500MM LONG
- INCLUDES GIRTH RING, TRUNNIONS, AND SPARE MOTOR
- SYSTEM INCLUDES RAMSEY WEIGH BELT FEEDER, 600 MM WIDE WITH LOAD CELLS, CONTROLS AND SPARE BELT
- 8′ DIAMETER ANIVI-STURTEVANT DYNAMIC AIR CLASSIFIER DRIVEN BY 25KW MOTOR
- (3) 9″ DIAMETER JERVIS B. WEB SCREW CONVEYORS
- MEASURING 12′, 20′ AND 22′ LONG
- (2) MIKRO-PULSAIRE DUST COLLECTORS (MODEL 49S-4-20, 461 SQ FT AND MODEL 81S-8-20, 762 SQ FT)
- 40′ HIGH ANIVI BUCKET ELEVATOR
- PREVIOUSLY MILLING DRY ZIRCON WITH 7.5 MOHS HARDNESS AT CAPACITY OF 10 METRIC TONS PER DAY
