Description

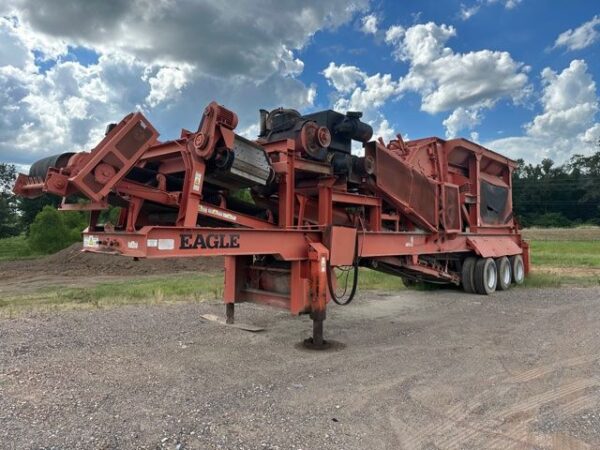

1999 Eagle 500-05CV Portable Impactor Plant, SN 11617, Up to 150 TPH, Rebuilt PTO, electric generator. Equip yourself with the gold standard.
Manufacture & Design
- Serial Number 11617
- Rated at 100-to-150 TPH
- 7,300 hours of use
Components & Inclusions
- John Deere Diesel drive for crusher
- Rebuilt PTO
- electric generator for feeder
- mounted on a three axle carrier
- with fifth wheel hookup
- running lights
- access steps
- tire skirts
- equipped with a feed hopper
- one-step 32″ X 16′ vibrating grizzly feeder
- grizzly bars on lower step
- ULTRAMAX UM-05 HSI Crusher with a 33″ X 32″ feed opening
- a four (4) blow bar rotor with blow bars flipped and rated at 50% wear remaining
- 30″ material discharge conveyor with NEW belt
- DING self-cleaning magnetic conveyor
Notes
- gas powered pony motor to hydraulically lift plant off tires with four (4) hydraulic stabilizers
- 8′ 6″ wide X 13′ 5″ high X 48′ 6″ OAL (44′ 6″ Kingpin length)
- weight 73,000 lbs.
