Description

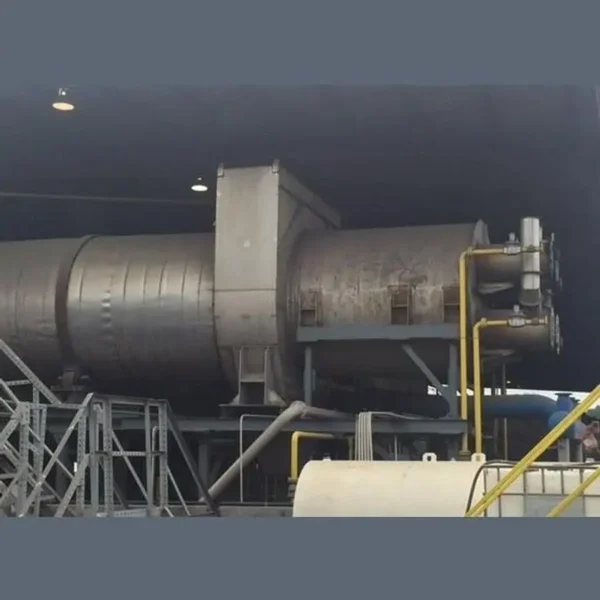

Vulcan 9FT X 60FT Rotary Drum Dryer. Equip Yourself with the Gold Standard.
- Refurbished 2010 with New Controls & Instrumentation
- Limited Service after refurbishing due to project cancellation
- Used to dry Coal and Aggregate
- Burners Removed and In Storage.
- System Installed Under Cover Capacity: 200-300 TPH – Dependent on Process and Product Size
- Counter-Current, Fired at Discharge End – Can be Reversed by Adding Feed Section Between Combustion Chamber and Retort Shell Internals.
- Internal Lifters Length of Shell Construction:
- Carbon Steel Combustion
- Burner: Gas Fired, 40MM Btu/Hr. Total (4 Burners @ 10MM BTU/HR Ea.)
- Combustion Chamber and Blower – Temperature up to 650° F (Approx.)
- Driven By: 50HP Electric Motor Drive Via: Gear Reducer, Westinghouse, Via Bull Gear & Pinion Rotating Speed: Variable RPM Running Gear:
- Trunnions & Rollers – 30in Dia. x 13in Wide. 13ft 3in OD Bull Gear
